I recently purchased a Bambu Lab H2D with the Vision Encoder add-on. I have printed two Califlowers using PLA to test the effectiveness of the Vision Encoder.

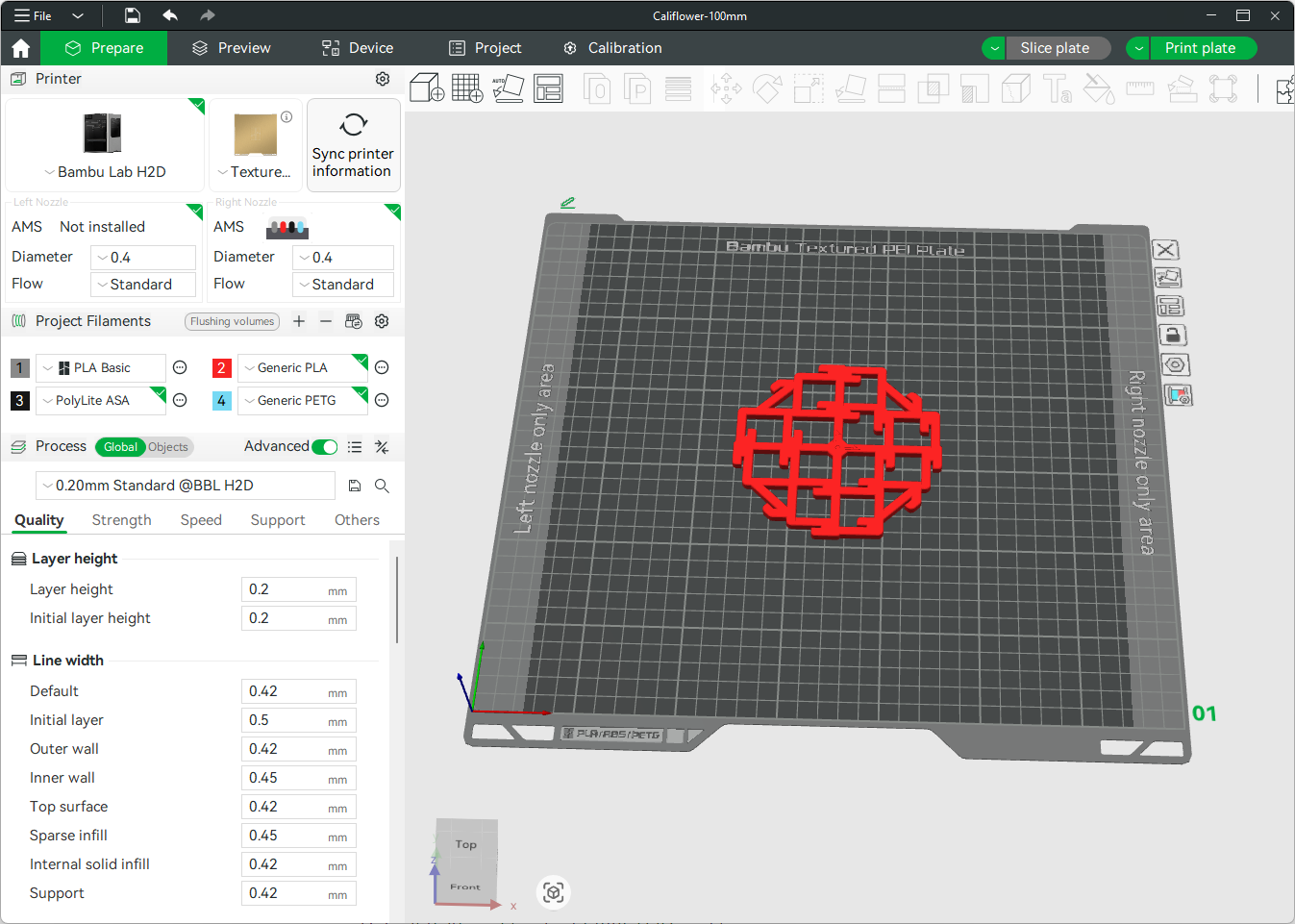

Print settings for both Califlowers:
- Bambu Studio version 2.0.3.54 (Latest at time of tests)
- H2D Firmware version 01.01.02.08 (Latest at time of tests)
- Latest print profiles in Bambu Studio (Latest at time of tests)
- Generic PLA Profile
- Standard flow 0.4mm nozzle in the right nozzle position
- Textured PEI Sheet
- Default 0.20mm Standard @BBL H2D profile
No Motion Enhancements

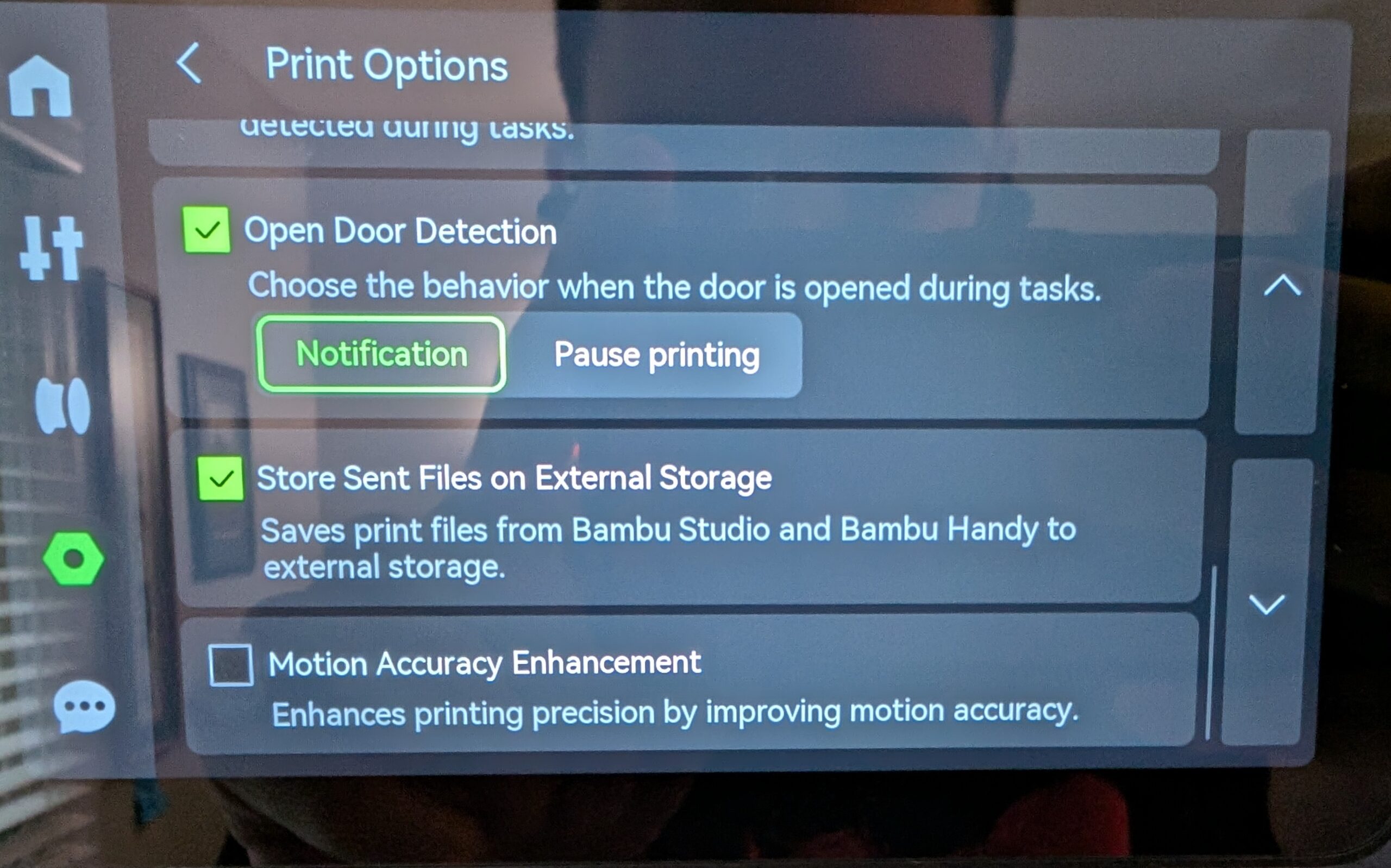

This test is the default printer config with the Motion Enhancement option Disabled in the printer settings.

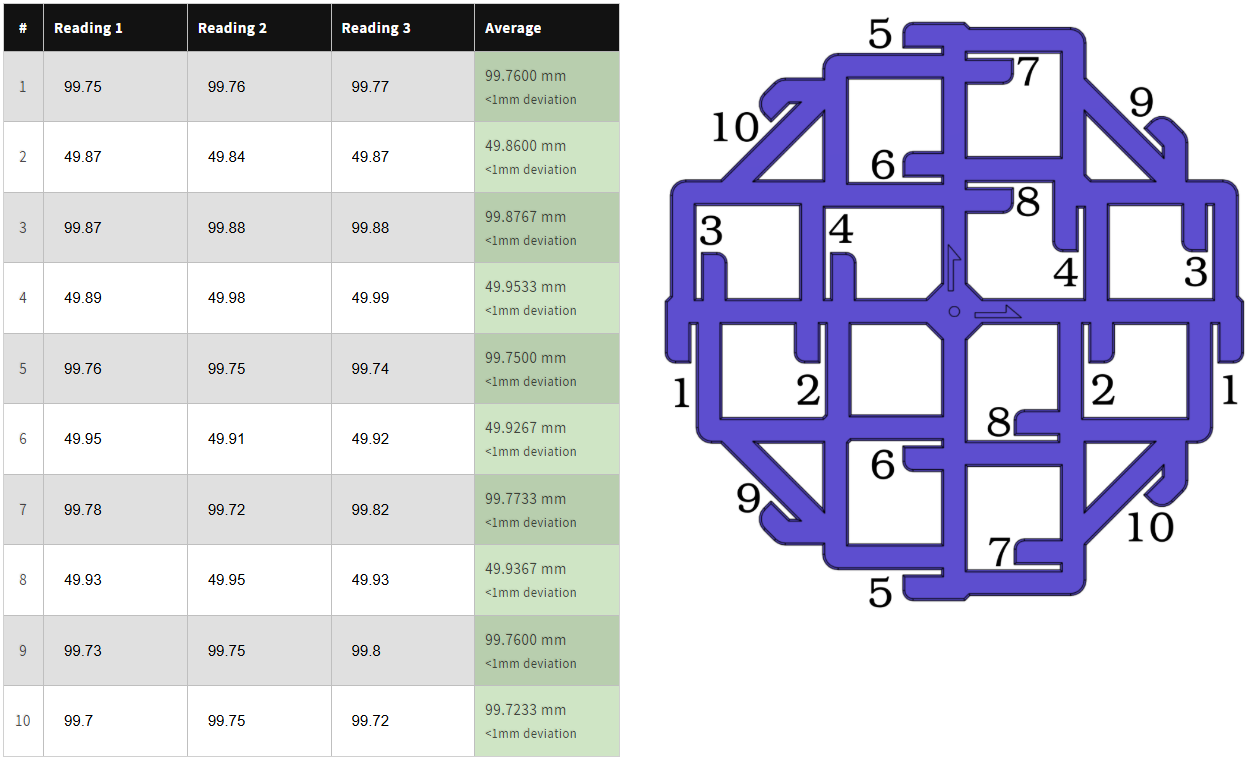

Here are the measurements from the print.

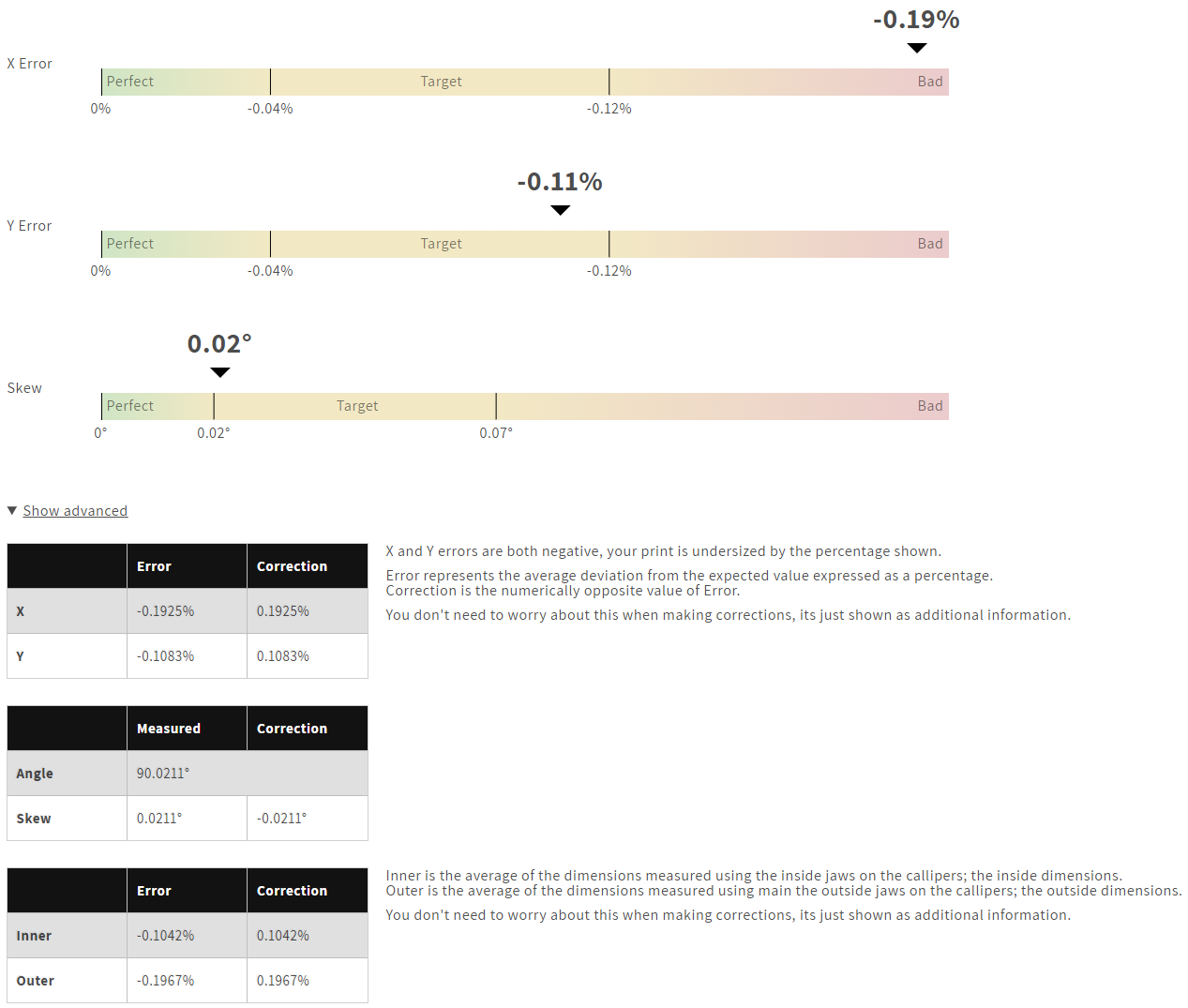

Here are the results for the print without motion enhancements.
With Motion Enhancements
This test is the default printer config with the Motion Enhancement option Enabled in the printer settings.

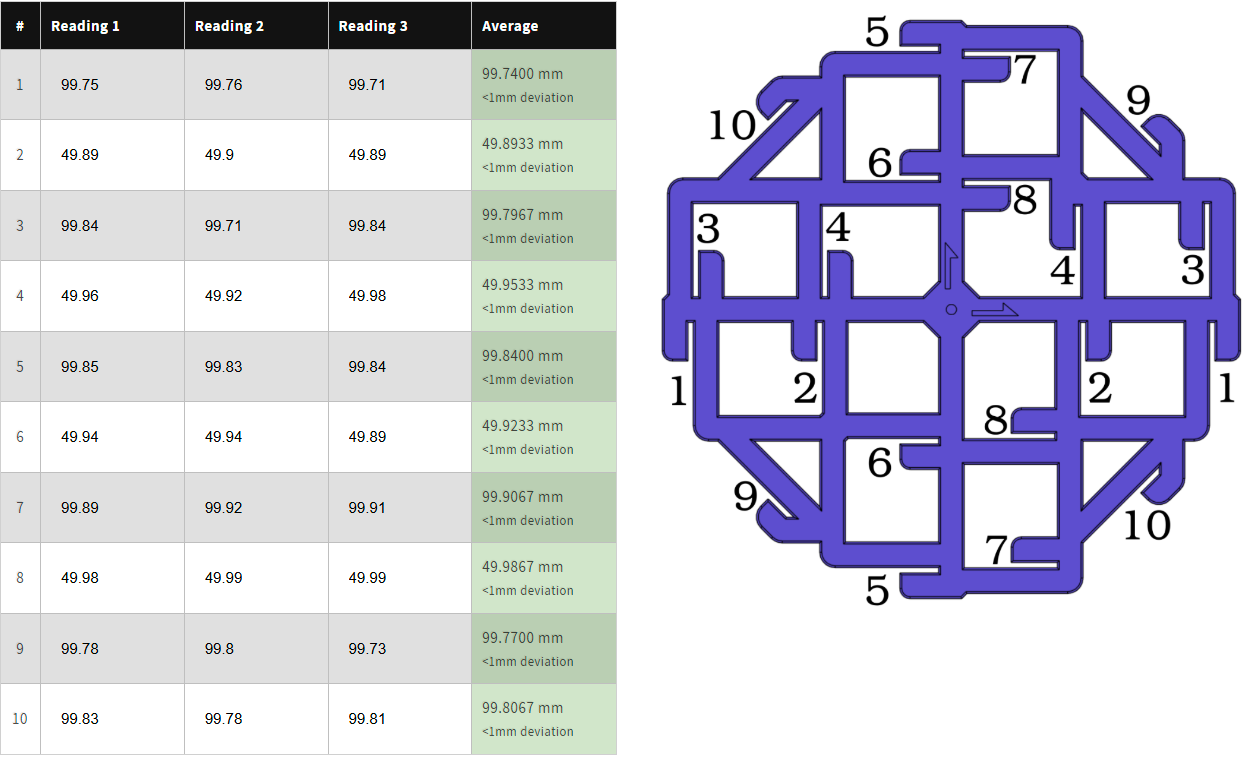

Here are the measurements from the print.

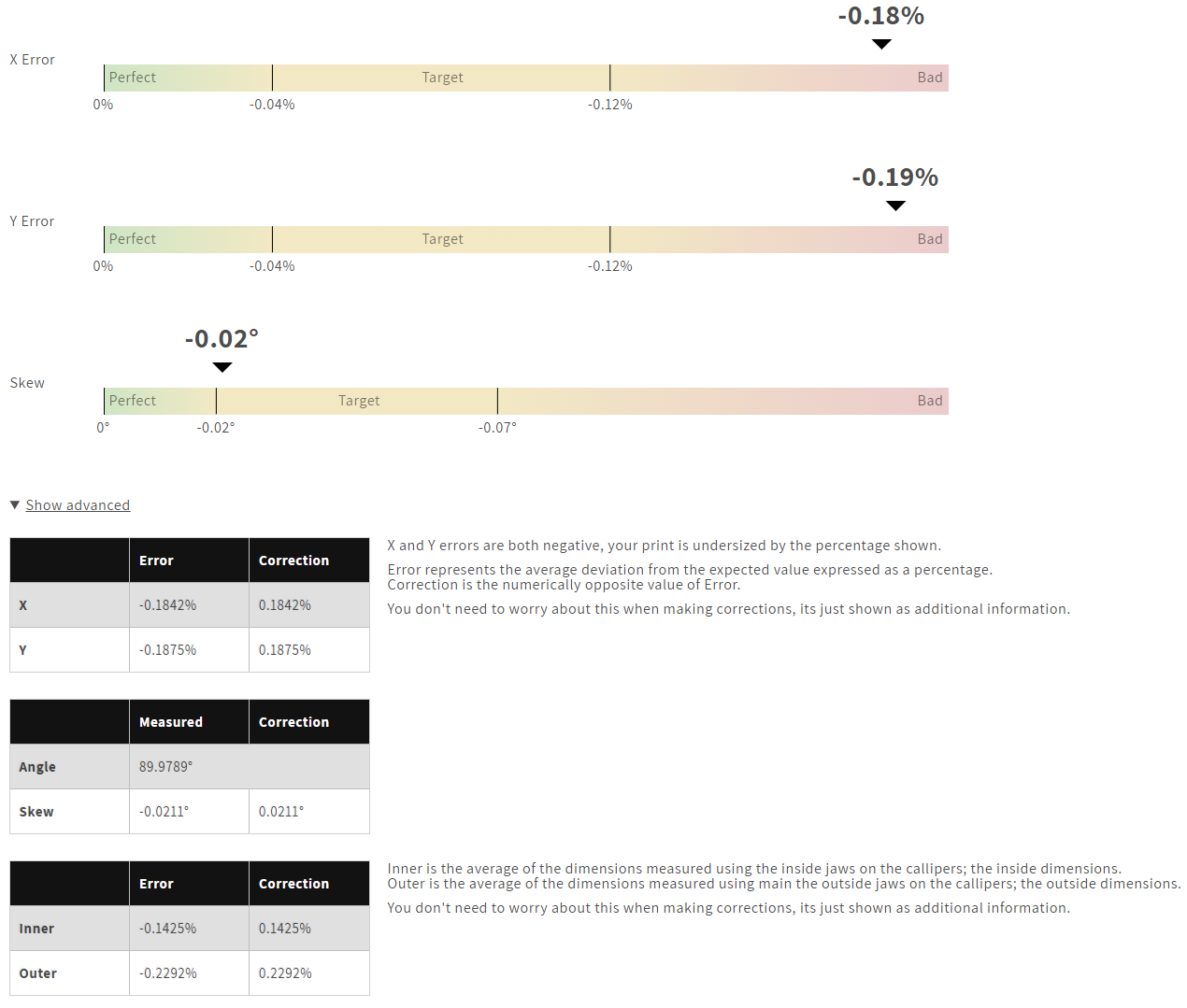

Here are the results for the print without motion enhancements.
